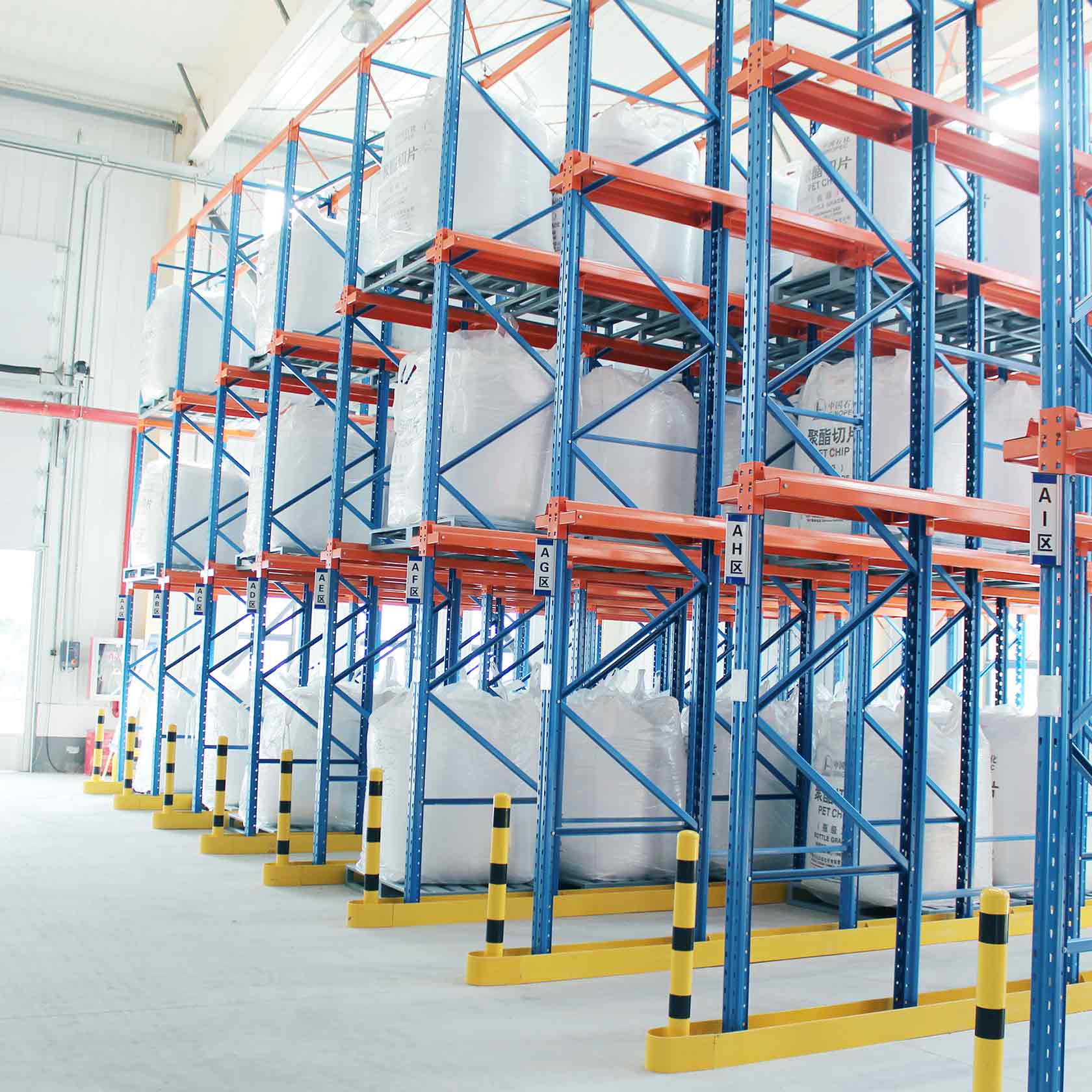

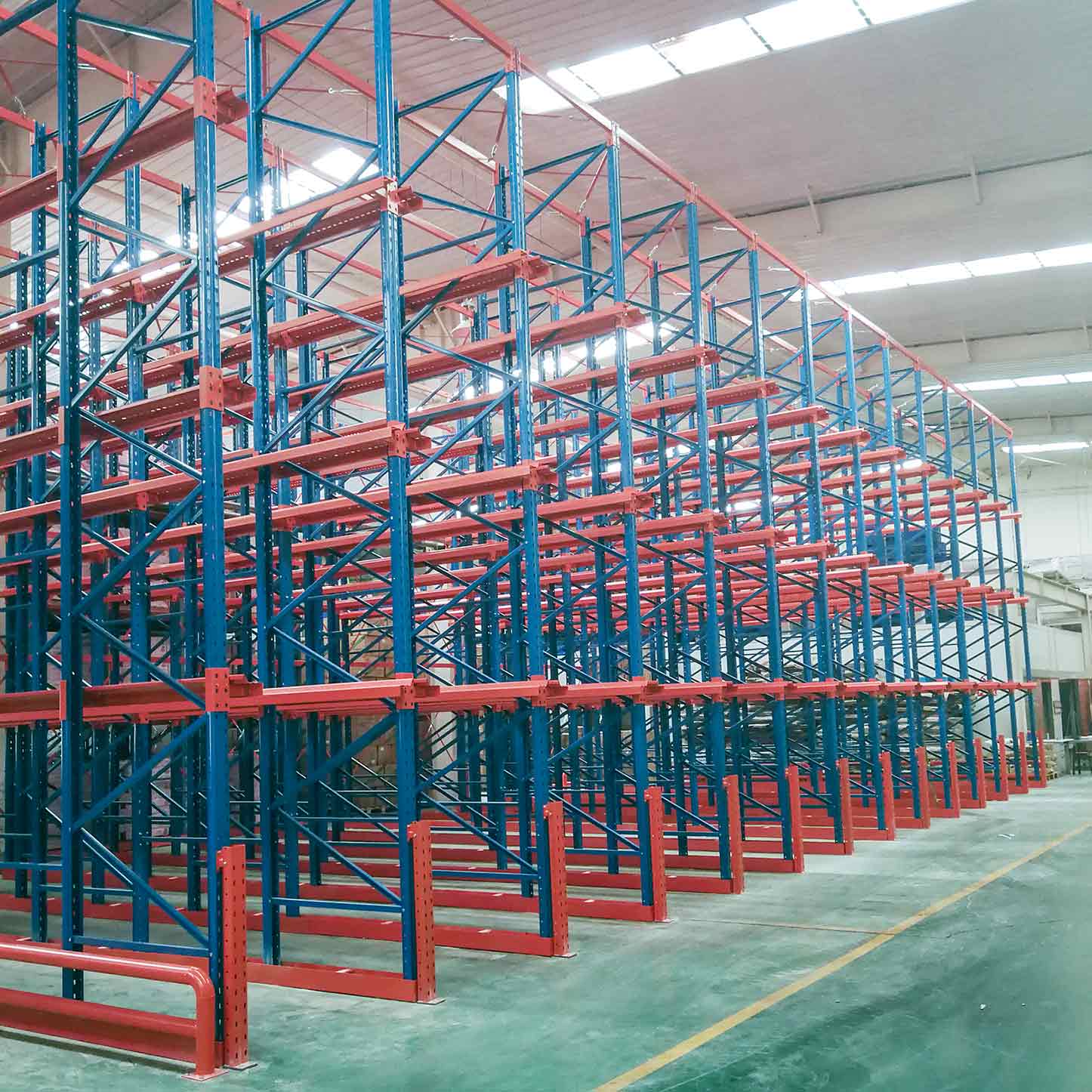

Details of Drive‑In Pallet Racking

Drive‑in pallet racking is an integrated continuous steel storage system without separated individual pallet positions. It consists of upright frames, top tie beams, load support rails, lane guides, pallet back‑stops, safety protectors and floor anchor assemblies. Forklifts drive inside storage lanes, and pallets rest on opposite load rails to achieve high‑density storage with LIFO (Last‑In‑First‑Out) operating principle.

Item No :
Drive in racking
Order(MOQ) :
1pcs 40HC
Payment :
T/T
Product Origin :
China
Color :
RAL5010/2009, or customized
Shipping Port :
Xingang, Tianjin, China
Lead Time :
About25days

Inquiry Now

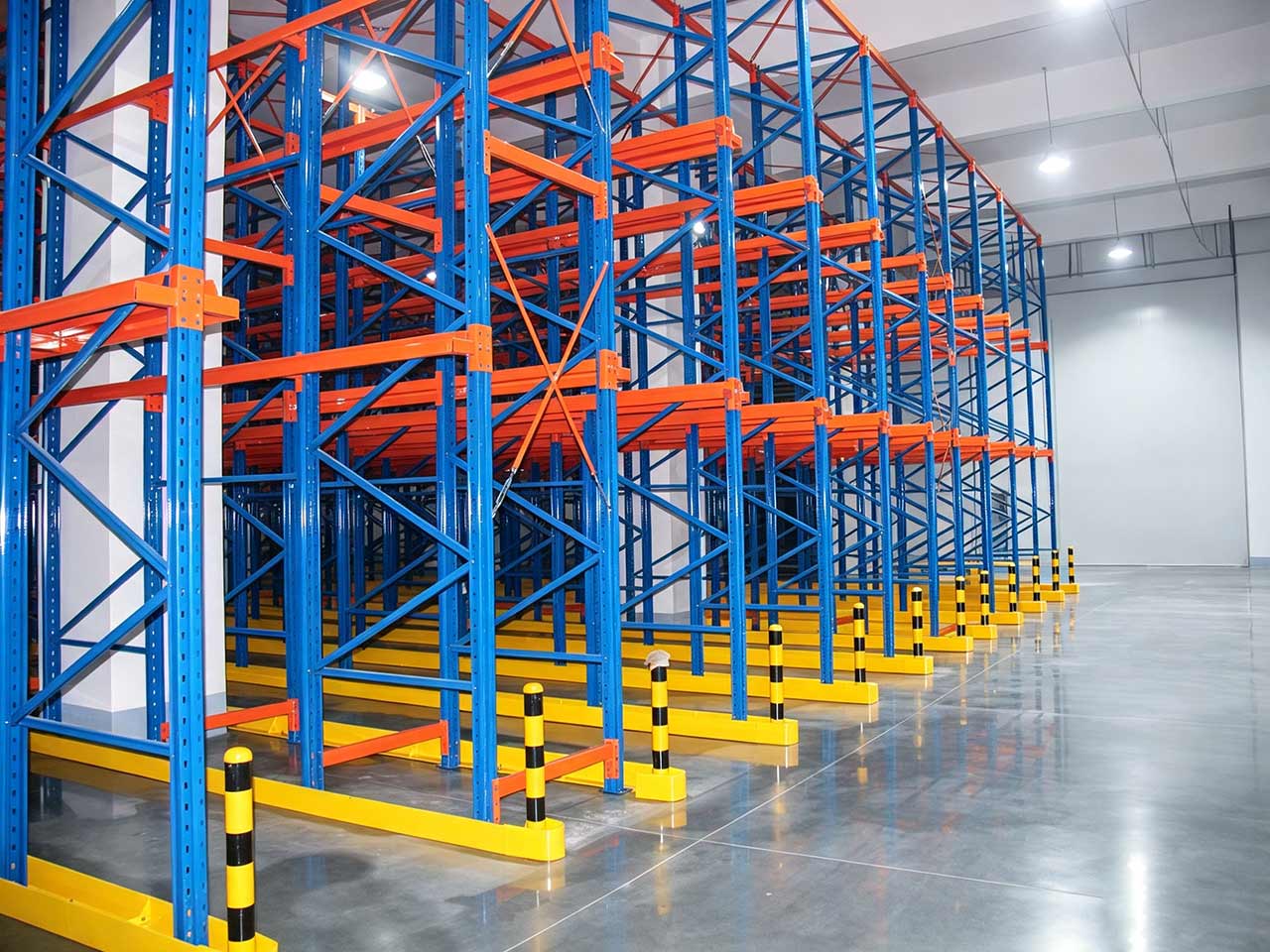

Drive‑In Pallet Racking is a high‑density bulk storage solution designed for large‑volume, low‑SKU goods. Forklifts drive directly inside the racking lanes to place and retrieve pallets. By eliminating multiple working aisles, it greatly improves warehouse space utilization, widely used for cold‑chain, food & beverage, manufacturing, logistics distribution centers.

Working Principle

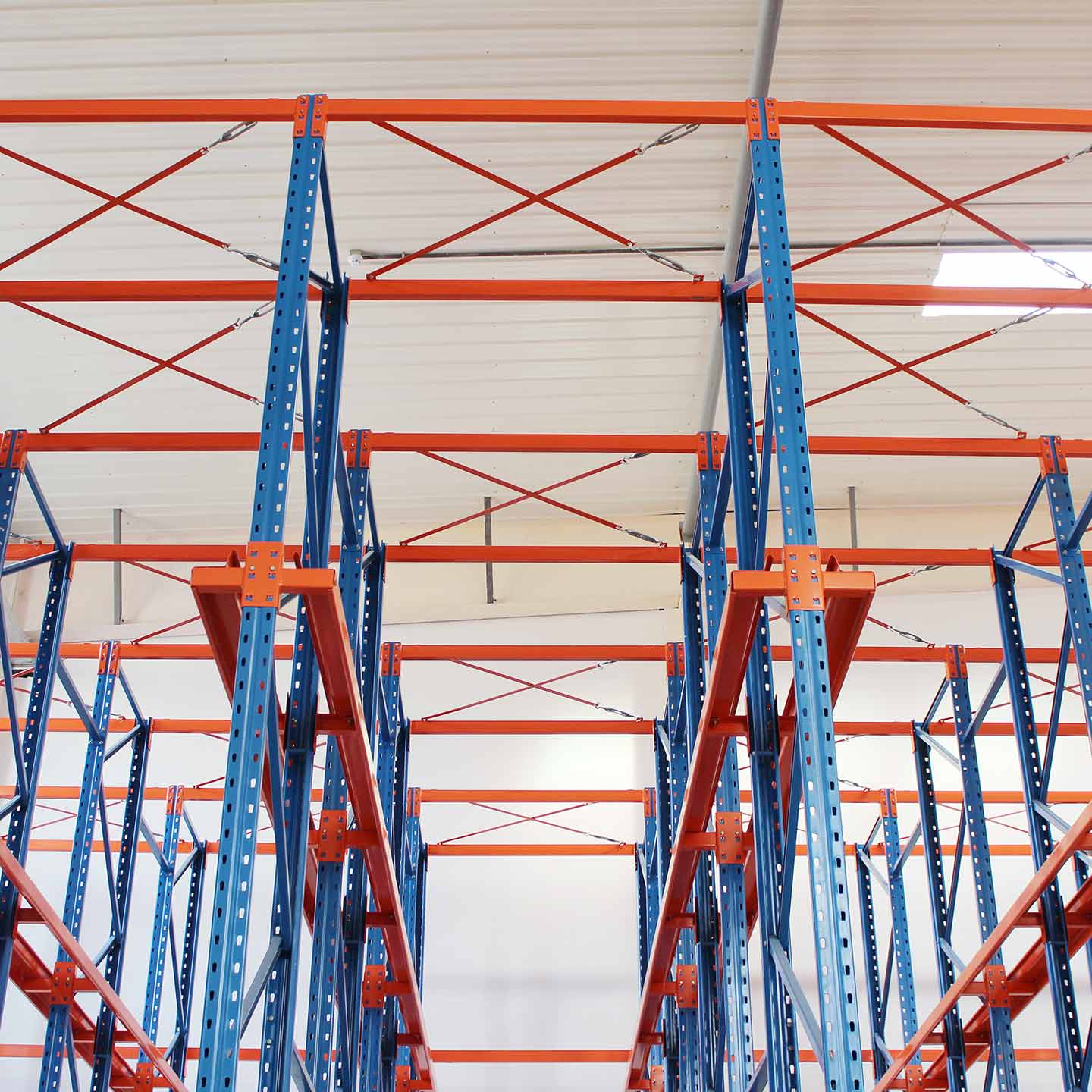

Pallets are loaded from lane entrance and pushed inward along load rails. Goods follow LIFO rule: last‑in pallets will be unloaded first. Deeper lanes bring higher storage density, yet random access for individual pallets inside one lane is unavailable.

📖 technical detailsv

Surface Finish

All steel parts adopt electrostatic powder coating for anti‑rust and scratch resistance. Standard colors: blue uprights, orange rails & protectors. Custom green, grey, yellow available. Suitable for cold‑storage freezer environment.

Working Principle

Installation Feature

100% bolt‑together construction, no on‑site welding. Custom lane depth, rack height and load capacity based on warehouse dimension and pallet specification.

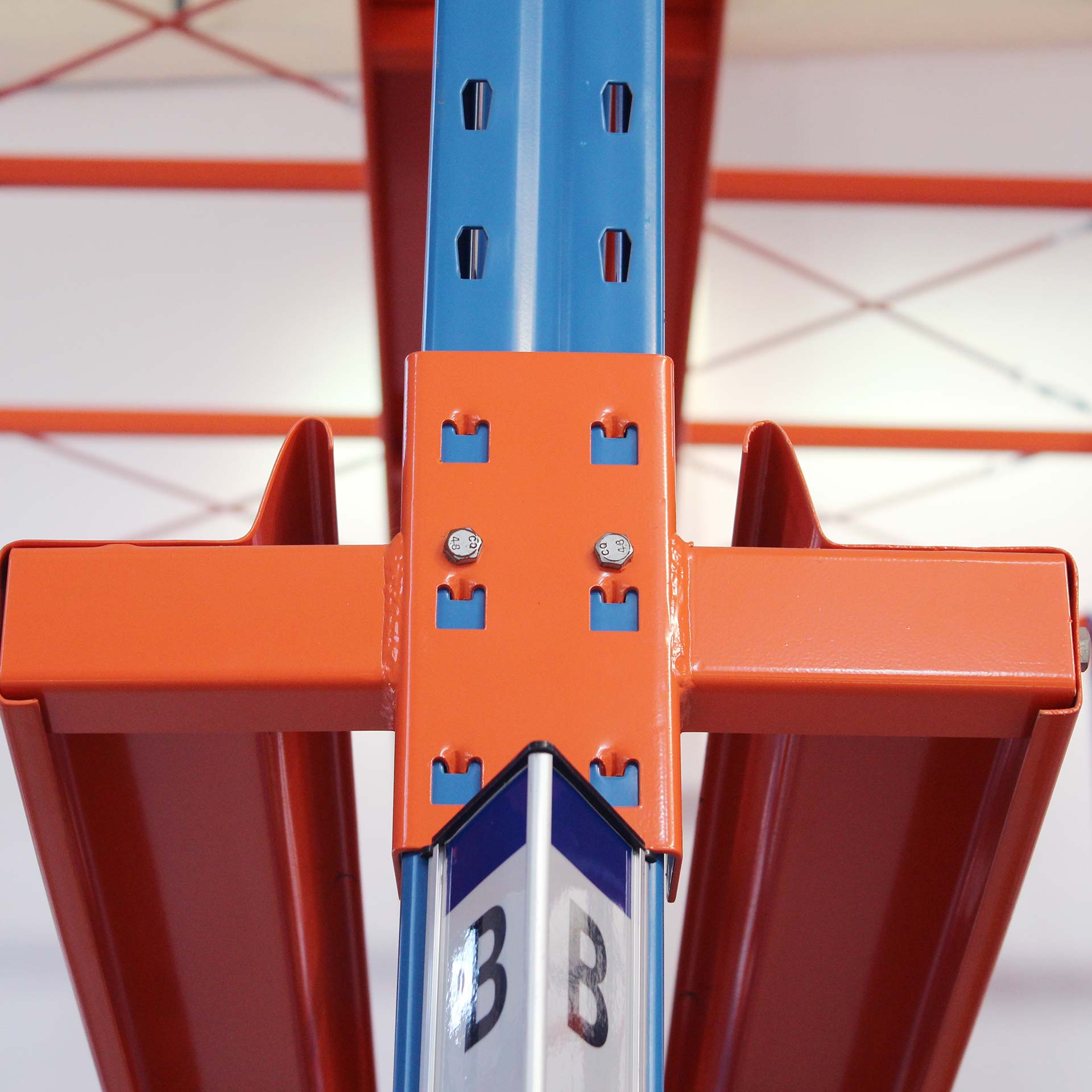

Upright frame/Connector

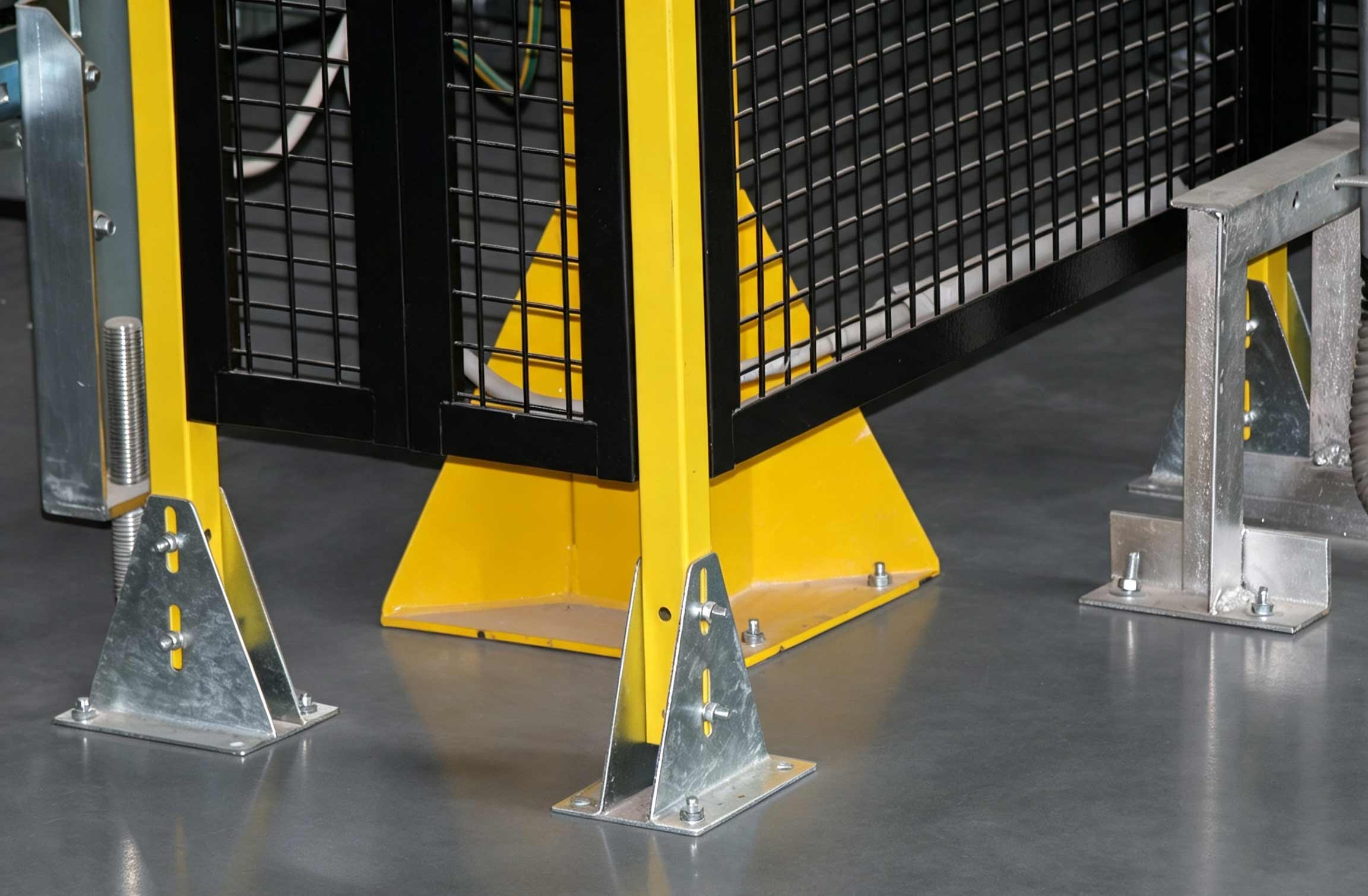

Upright protector / Column guard

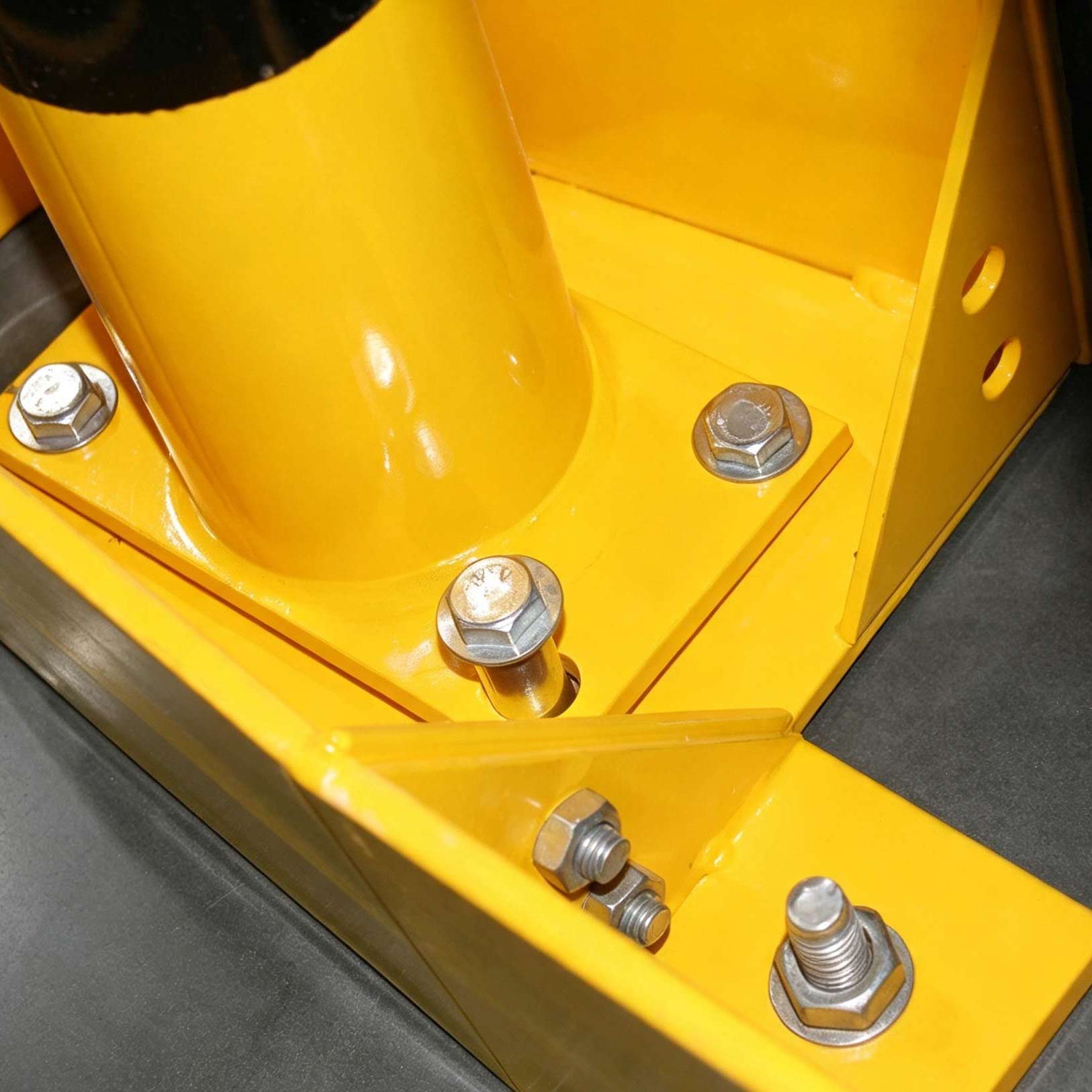

Anchor bolt
Electrostatic powder coating

🏭 Key Benefits:

Maximize warehouse space: Greatly cut aisle space cost, ideal for rent‑expensive warehouses.
Robust & safe detail design: Full set collision‑protection accessories, reduce rack damage caused by forklift mis‑operation.
Adapt to cold‑storage: Special surface treatment works well under minus‑temperature freezer conditions.
Modular bolt‑connected structure: Easy install, expandable, re‑configurable when warehouse layout changes.
Strict quality control: Raw material inspection, welding quality check, load‑bearing test before delivery.
One‑stop service: Project evaluation, CAD layout drawing, production, delivery and on‑site installation guidance.

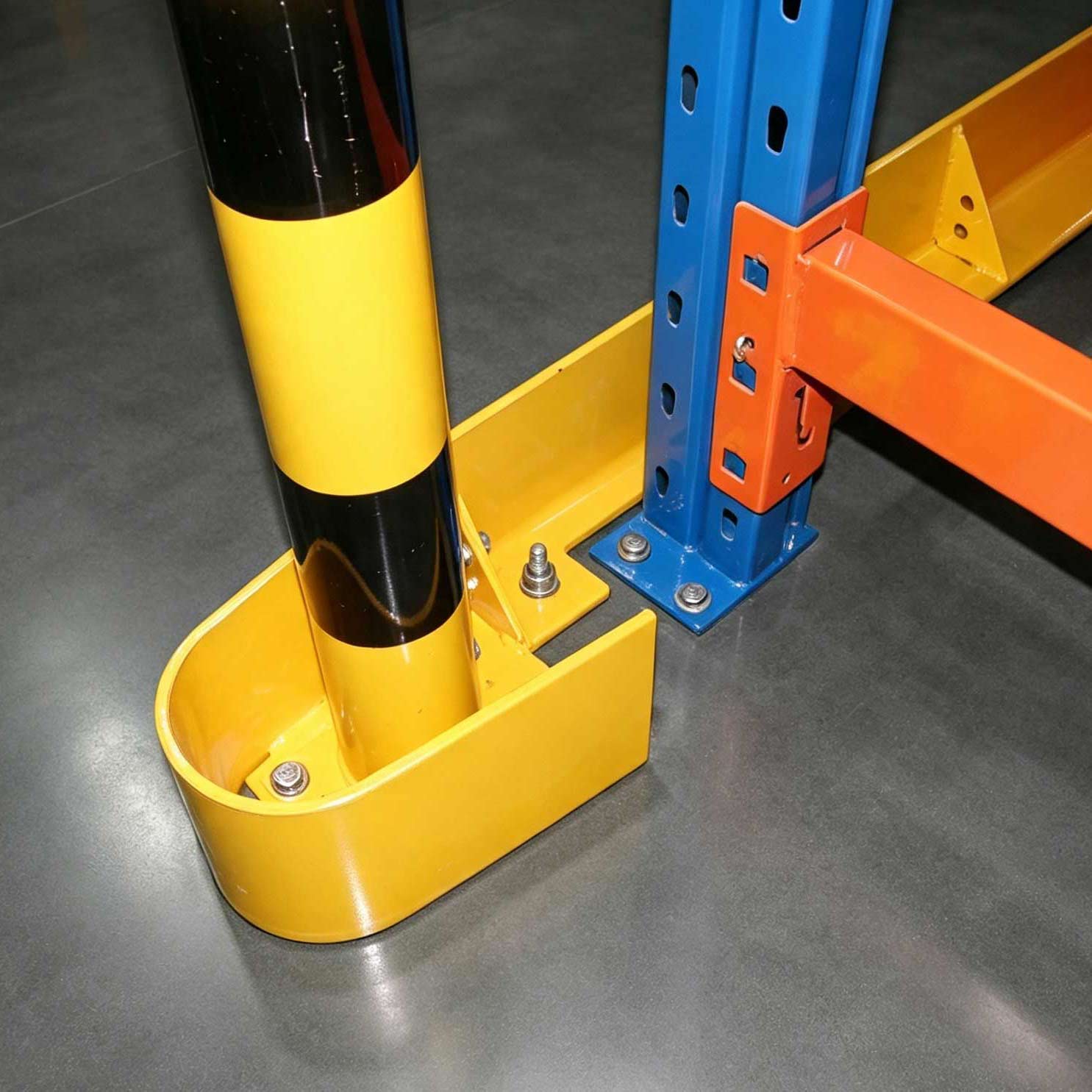

Upright protector / Column guard

❓ FAQ

Q: What is the difference between drive‑in rack and selective pallet rack?

A: Selective rack gives direct access for every single pallet, but takes more aisle space. Drive‑in rack saves aisle space for higher storage density, with LIFO stock rule.

Q:Can drive‑in rack work in cold freezer warehouse?

A: Yes. We adopt low‑temperature‑adapted steel and powder coating for cold‑storage projects.

Q: What accessories are included for safety?

A: Column protectors, lane guide rails, pallet end back‑stops, anchor bolts for floor fixing.

Q:Can I customize rack color and dimension?

A: Fully custom. We adjust height, lane depth, load capacity, coating color according your real‑site condition.

Q: Is installation complicated?

A: It is bolt‑assembled. We supply detailed installation drawing, and can arrange technician guidance if needed.
