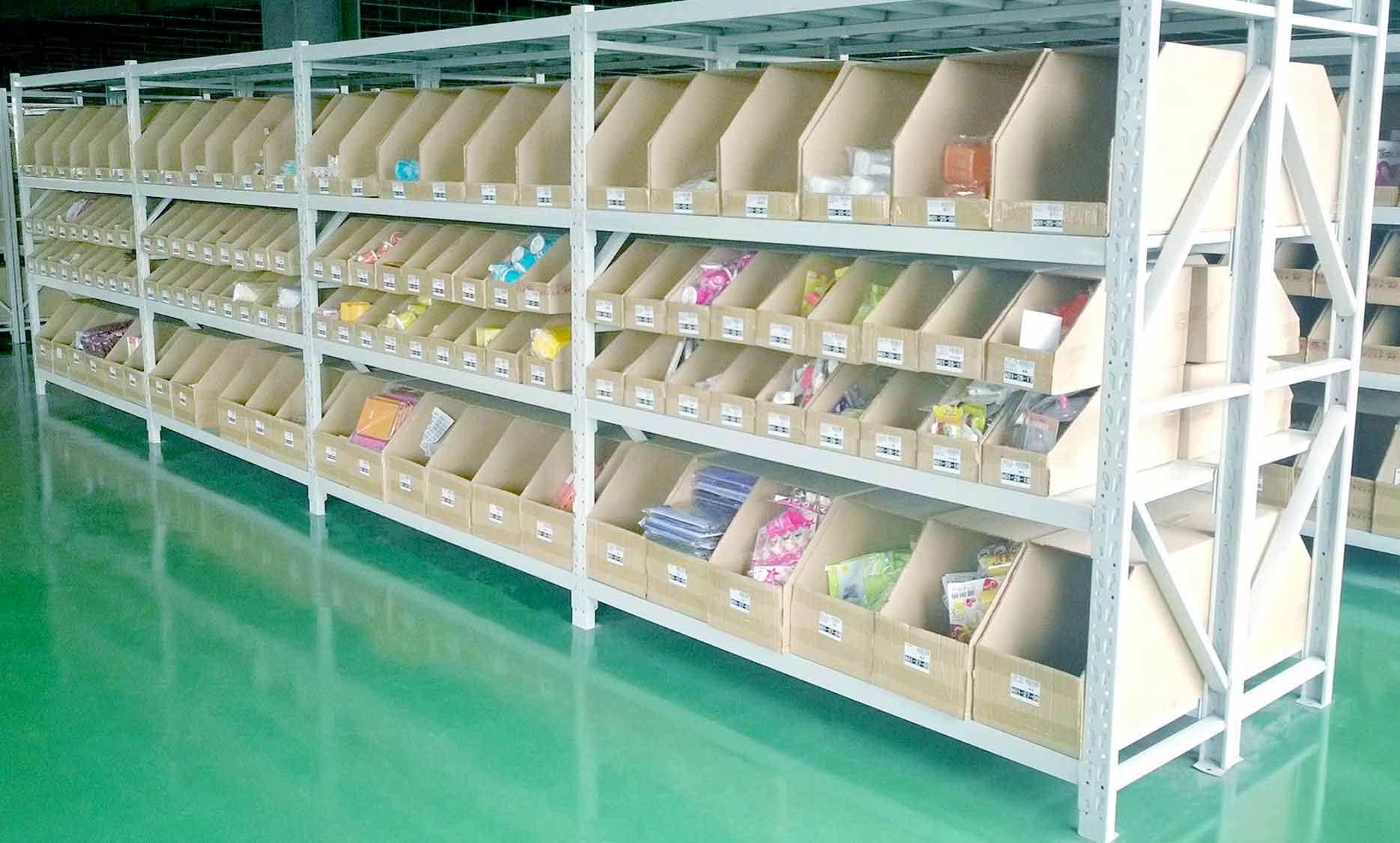

Long span shelving( l l type) is particularly suitable for storage of manually accessed boxes. It is characterized by low cost, convenientassembling and disassembling. reusability after warehouse relocation, free adjustment of layer number and column number, alowingdifferent layer height and total height based on warehouse height, and maximized space use rate. It is especialy suitable for storage of goodswith low quantity,.many varieties and frequent warehouse-in/ut With diversified fittings available, itcan be used to store goods of various sizes.
| Core Components | Upright frames, step beams, support brackets, chipboard/steel deck panels, horizontal bracings, diagonal bracings, base plates, leveling feet, safety lock pins, column protectors, label holders |
| Pitch Adjustability | This standard long span shelf is horizontal flat storage without inherent incline structure. When matched with carton flow track attachments, multi-hole brackets allow flexible incline angle adjustment to control carton sliding speed. |
| Storage Capacity | Multi-layer vertical pallet storage structure. Customizable bay width, depth and height to fit different sizes of pallets. Each level holds single or double pallets, greatly increasing overall warehouse inventory load volume. |
| Layout Configurations | Single row layout, back-to-back double row layout, narrow aisle layout, multi-bay continuous combination layout, high-rise storage layout, mixed storage layout integrated with long span shelving or carton flow racking. |
| Compatible Equipment | Electric forklifts, manual pallet jacks, reach trucks, narrow aisle stackers, standard pallets, warehouse picking trolleys, cargo conveyors, WMS warehouse management system, cargo label holders. |
| Safety Connections | Spring safety lock pins for beams, bolt-connected bracing joints, ground anchor bolts for base plates, interlocking frame connectors, anti-separation beam locks, fastening nuts and bolts for all assemblies. |

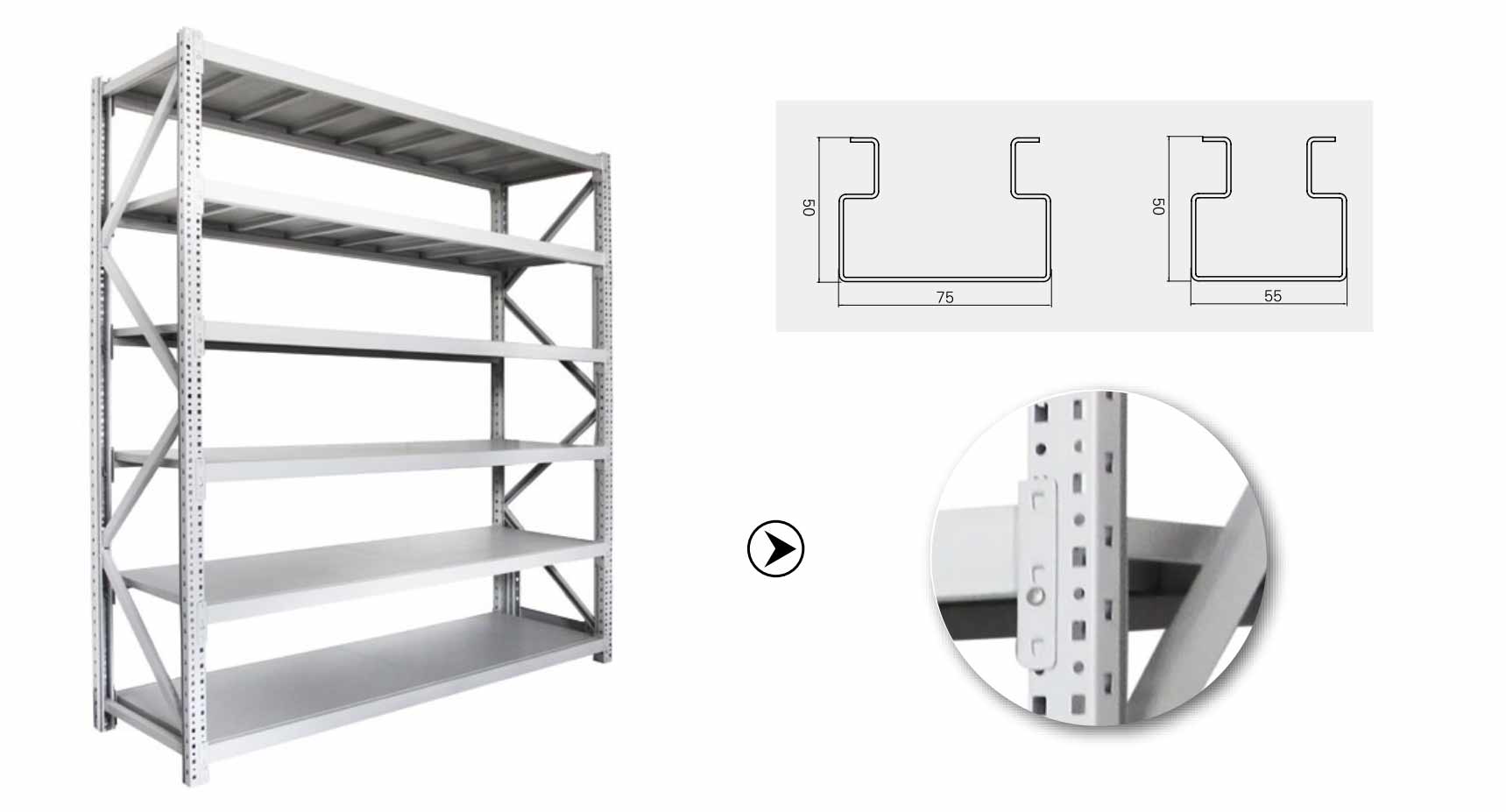

Connection between Main racking and Added-on racking
The layer height may be adjusted freely with a pitch of50mm, and the shelving height can be up to 5,000mm.
Hanging hook structure, allowing free adjustment of storage interval.
Racking height generally not higher than 2,500mm
Design load: 300kg/level
Due to its robust structure and massive load-bearing capacity, this racking system is widely implemented across various heavy-duty sectors:
