Wide Span Shelving, I Beam Long Span Racking

Long Span Industrial Shelving (I Type Frame)

Type I Long Span Shelving is an economical light-medium wide-span storage rack for cartons and small parts. With adjustable multi-layer structure, stable bolted frame and low cost, it is ideal for small warehouses, workshops and stock rooms with flexible customized dimensions.

Item No :

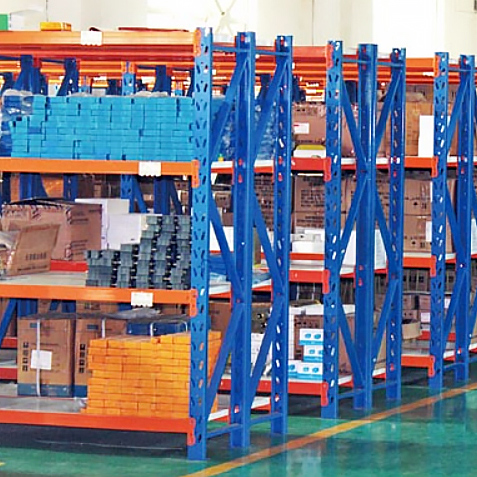

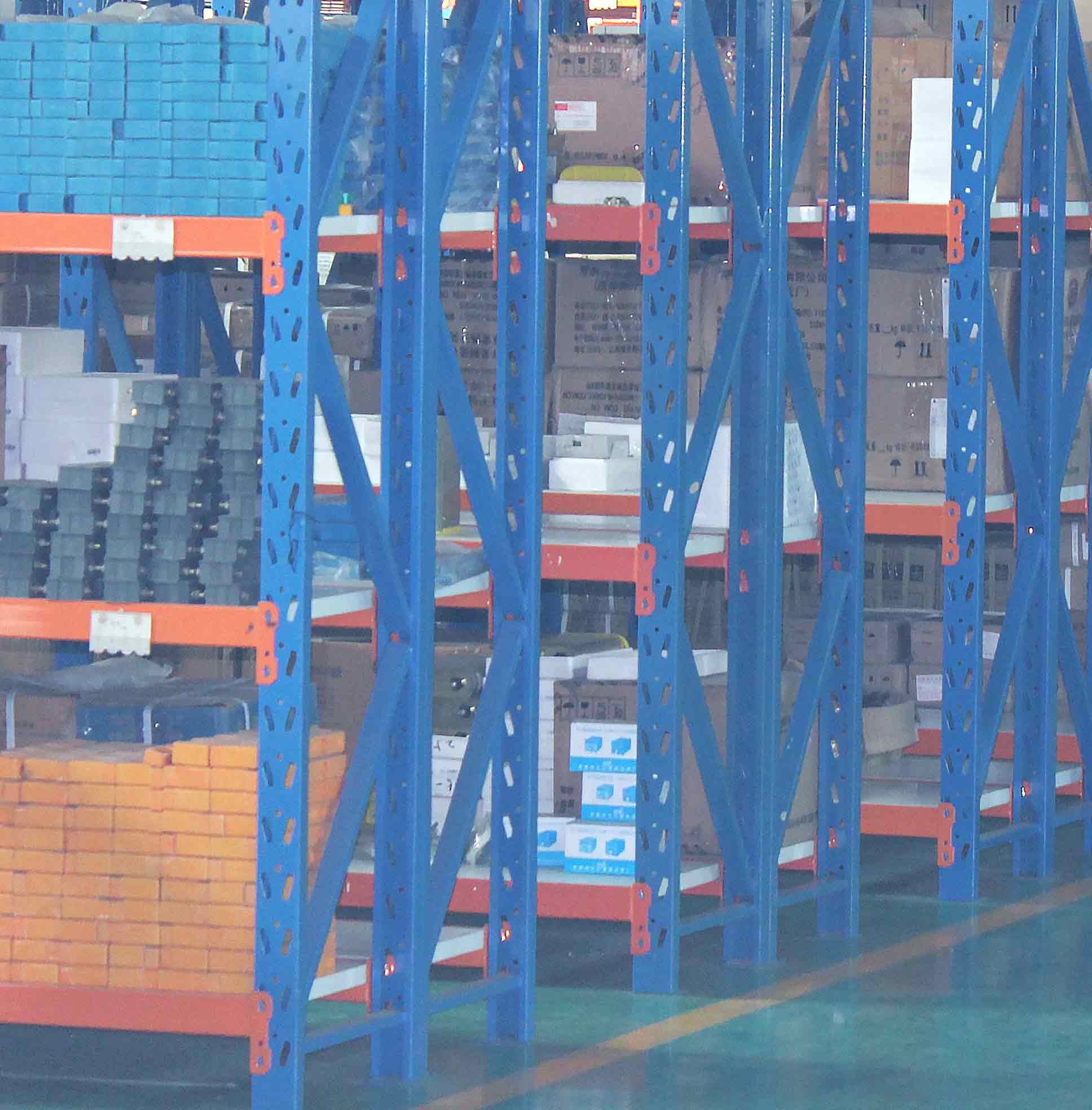

Long Span Shelving (I Type )
Order(MOQ) :
1PCs 40HC
Payment :
TT
Product Origin :
China
Color :
RAL5010/2009, or customized
Shipping Port :
Xinggang, Tianjin, China
Lead Time :
About 25 days

Inquiry Now

📖 Product Overview

Long span shelving( l l type) is characterized by assembled structure wth standard connection pieces, simple structure, pretty outine, bolt-free,connection, convenient installation and disassembly, and free adjustment of shelf board with a pitch of 85mm.

⚙️ Specification

Core Components	Upright frames, box beams, support brackets, particle board decks, horizontal bracings, diagonal bracings, base plates, leveling feet, safety lock pins, label holders
Pitch Adjustability	Type I long span shelving adopts horizontal flat storage design without built-in inclined tracks. If equipped with optional carton flow tracks, multi-position brackets can adjust the incline angle to control the sliding speed of cartons and plastic bins.
Storage Capacity	Type I long span shelving adopts horizontal flat storage design without built-in inclined tracks. If equipped with optional carton flow tracks, multi-position brackets can adjust the incline angle to control the sliding speed of cartons and plastic bins.
Layout Configurations	Single-row independent layout, back-to-back double-row layout, continuous multi-bay combined layout, low-rise multi-layer layout, combined layout matched with light racking units.
Compatible Equipment	Manual picking trolleys, plastic storage bins, hand stackers, cargo labeling accessories, small material handling carts, warehouse inventory management tags.
Safety Connections	Spring safety lock pins for beam locking, bolt-connected horizontal and diagonal bracings, ground anchor bolts for base plates, anti-loose assembly bolts and nuts for all frame joints.

📐 Characteristics

Characteristics

Bolt-free design, simple assembling.

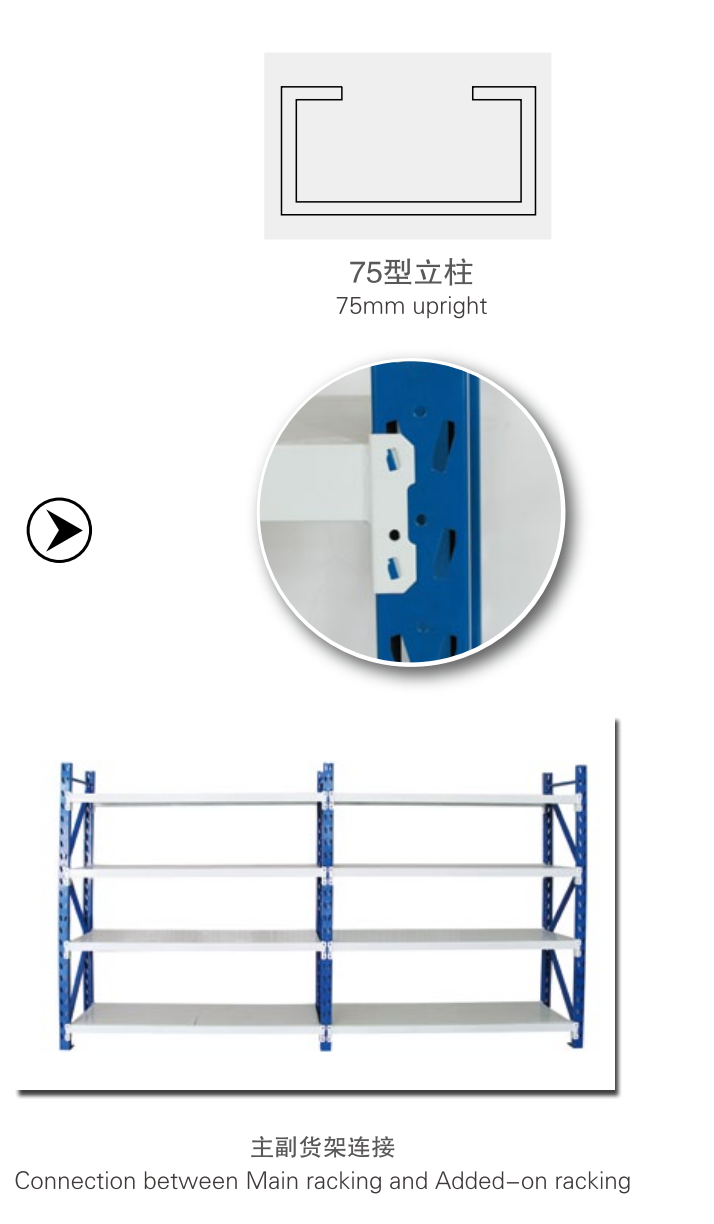

The upright and the beam are pinned with splayed hole structure.Hanging hook structure,

allowing free adjustment of storage interval.

Racking height generally not higher than 2,500mm

Design load: 300kg/level

⭐ Advantages

✔️ Highly Versatile Configurations: Uprights with uniform pitch holes support free adjustment of beam mounting heights. It can be configured as low parts storage shelves or multi-layer high storage racks, adapting to goods of various heights.
✔️ Maximized Space Utilization: Vertical layered storage fully utilizes vertical overhead space of the warehouse. Compact combined layout reduces waste of floor area and aisle space, effectively improving the cubic storage utilization rate of small and medium warehouses.
✔️ Comprehensive Safety System: Built-in stable cross & diagonal bracing anti-toppling structure, beam safety lock pins, anti-slip adjustable leveling feet, load capacity marking labels; column protectors and side guardrails are optional extra safety accessories.

Saving in efforts, time and space

High stability thanks to high quality

cold rolled steel material

Convenient installation,

simple structure and firmconnection

--------------占位---------------

🏭 Application

Due to its robust structure and massive load-bearing capacity, this racking system is widely implemented across various heavy-duty sectors:

Logistics & Distribution Centers Large-scale Manufacturing Plants Cold Storage Facilities Retail & E-commerce Warehouses

❓ FAQ

Q:What are the advantages of I Type upright frame?

A: The I profile structure provides high rigidity and strong load-bearing capacity. It is stable, not easy to deform, and performs well for long-span layout.

Q:What is the standard load capacity per level?

A: Medium duty: 300–500 kg/layer; Heavy duty: 500–1000 kg/layer. Custom load capacity is available.

Q: What are the standard dimensions?

A: Height: 2000–6000 mm; Beam span: 1500–3000 mm; Depth: 500–1200 mm. All sizes can be customized.
